ELECTRIC LOAD PICKER

ELECTRIC 24 or 36 VOLT
3000 lbs. (1360 kg)

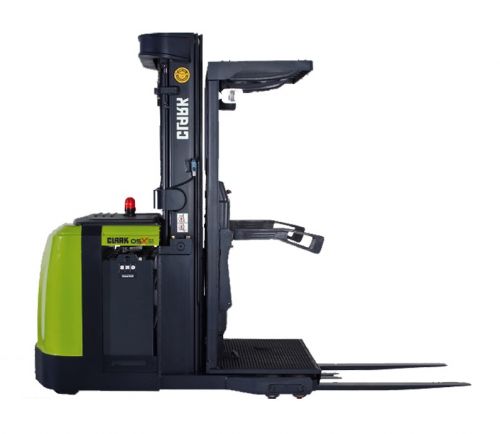

The Clark OSX (specifically the OSX15) is a high-performance, narrow-aisle electric order picker with a 3,000 lbs load capacity. The OSX 15 with 100 % AC Motors offers faster acceleration with unmatched lifting speeds while being energy efficient. Plug-in type speed sensor reduces service time and costly motor repairs. Uprights have massive cross members that support the I-channel mast rails. The rigid mast makes operators feel more secure and confident, particularly at heights. Comfortable, confident operators are more productive .

Outstanding truck performance, lower maintenance and parts costs, fewer service requirements, operator comfort, and energy efficiency combined to achieve maximum
productivity. This results in a better bottom line for you.

Load Capacity:

3,000 lbs (1,360 kg)

Travel Speed:

Up to 7.5 mph

Turning Radius:

68.9 inches

Power Options:

24V or 36V, plus optional lithium-ion batteries

INFINITELY VARIABLE LIFT/LOWER

Allowing the operator to easily position the
operator platform both when lifting and lowering
gives the operator excellent control and promotes optimum productivity

FULLY ADJUSTABLE

A properly trained mechanic can completely customize parameters to Operator’s Preference such as Acceleration Rate and Travel Speeds (separate Forward and Reverse).

WIDE PALLET CLAMP

Allowing the operator to easily position the
operator platform both when lifting and lowering
gives the operator excellent control and promotes optimum productivity

OPERATOR COMPARTMENT

Spacious platform offering a 4-point stance

Handle provides secure grab point, increasing operator confidence

Diagnostic display w/ drive wheel direction indicator

Utilizes the latest LCD technology, is bright and easy to read and is sealed to keep out dust and contaminants.

Electronic Power Steer ing

Provides quiet, responsive, low-effort operation and assures the steer wheel is in the proper direction at key on

ARTICULATED LOAD WHEELS

Constant contact

Is maintained with the floor even when traveling over cracks, expansion joints or uneven floors.

Contribute to a smoother ride

For operator and truck components when operating under these conditions.

Simple snap ring removal

Allows quick and easy removal/replacement of
load wheels when necessary. Improves productivity while reducing energy consumption.
