Elevating Work Platform Buddy

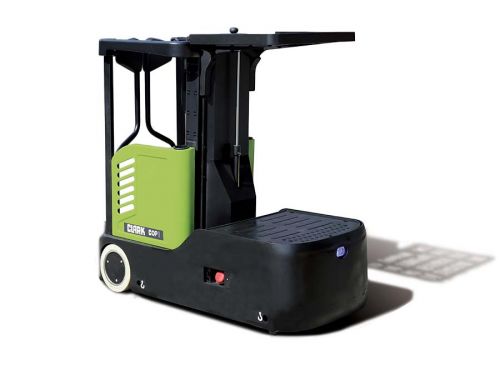

COP1 : ELEVATING WORK PLATFORM BUDDY

The ideal solution for almost any application area.

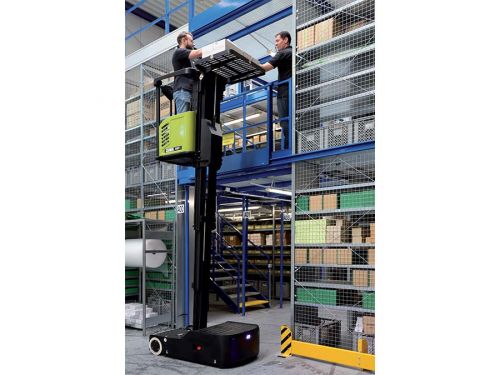

The ideal solution for almost any application area. Whether for repair and maintenance work indoors on level floors or for lifting small parts to a gallery, the COP1 is the ideal helper.

The vehicle is not only suitable for classic collection of orders, but also proves itself in filling shelves, conducting inventory re-stocking, decorating rooms, mounting signs or boards, replacing lamps or completing cleaning and repair work.

INVENTORY WORK OR COLLECTING ORDERS

REPAIR OR MAINTENANCE WORK

TRANSPORT OF SMALL PARTS

Load-bearing
capacity

(upper shelf): Max. 90 kg

Residual load
capacity

(lower shelf): Max. 110 kg

Lifting
height:

2,990 mm

Driving
speed:

Max. 6 km/h (when lowered)

Battery
power:

24 Volt 120 Ah

KEY FEATURES

SAFETY

  • Automatically closing safety bars when entering or leaving the working platform
  • The working platform can only be lifted with the safety bars closed
  • Safe two-handed operation so that the driver remains within the machine when the vehicle is moving
  • The ergonomic steering knob provides intuitive and precise operation of the vehicle
  • Safe use in low-light working areas and warning for oncoming traffic thanks to the integrated LED light

COST REDUCTION

  • Maintenance-free 120Ah
    lithium ion battery
  • The charger cable is integrated
    in the vehicle
  • Internal charger can be connected to a standard 240 Volt power socket
  • COP1 not only saves time by eliminating the need to climb up and down, but the risk of an accident
  • Neither charging rooms nor ventilation systems are required, as the charging process generates no gases

FLEXIBILITY

  • The COP1’s manoeuvrability allows it to work in confined areas with ease
  • The braking behaviour, acceleration and regenerative braking of the machine can be adapted to suit your operation
  • The height-adjustable shelf has an adjustment range of 485mm which allows goods of varying sizes to be picked
  • Powerful lithium-ion technology results in a long lasting and maintenance free battery that can be rapidly charged during breaks throughout the day ensuring higher uptimes.
SPECIALS FEATURES

STABILITY

Thanks to the five-point chassis,
which comprises of a combination of drive wheel, two support rollers and two load edges, gives the COP1 strong stability and stable driving
characteristics

SIMULTANEOUS DRIVING

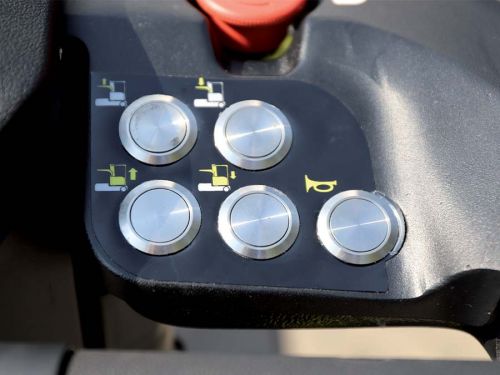

Easy-to-reach switches allow safe  and productive works. The maximum speed is automatically adjusted at different lifting heights.

INTUITIVE AND SAFE OPERATION

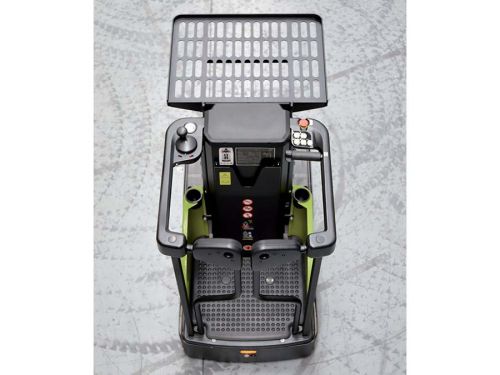

The ergonomic steering control ensures intuitive and precise operation of the vehicle. Small parts can be safely stowed away in the standard storage compartments. two cup holders and a storage compartment for documents make everyday work easier for the operator.

SAFETY SENSORS

The COP1 comes with standard
safety features, such as electrically monitored safety bars, two optical hand sensors, a dead man’s switch in the footwell, a tilting sensor and a safety sensor under the working platform to increase safety when the
vehicle is lowered.
